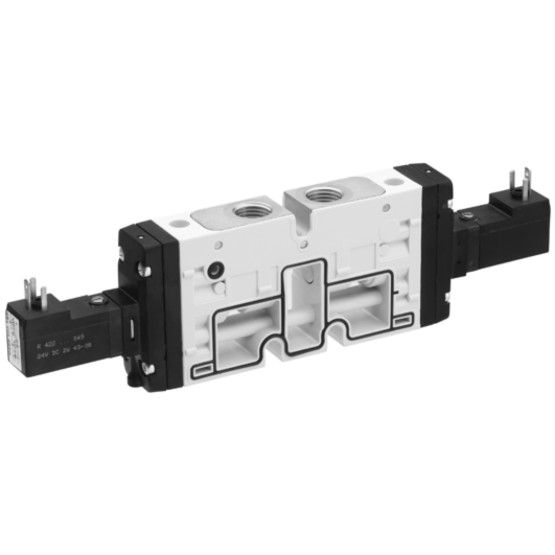

Aventics TC15-5/3EC-DO-024DC-E-FORM_C-VTS Electric and Pneumatic Actuated Directional Valve

Spool valve, Pipe connection, Single valve. View other configurations.

Aventics TC15-5/3EC-DO-024DC-E-FORM_C-VTS Electric and Pneumatic Actuated Directional Valve — Aventics-TC15-5/3EC-DO-024DC-E-FORM_C-VTS

Call for pricing

Part Numbers

TC15-5/3EC-DO-024DC-E-FORM_C-VTS
0820059861

Highlights...

TC15-5/3EC-DO-024DC-E-FORM_C-VTS
By Aventics
FREE Shipping on orders of $1,000 or more
Usually ships in 2-3 weeks

Features

Activation: Electrically
Compressed air connection output: G 1/4
Electrical Connection 2: ISO 15217, form C
Flow L M: 1300 l/min
Housing Material: Polyamide fiber-glass reinforced
Industry: Industrial
Manual Override: without detent
Max Working Pressure: 10 bar
Min Working Pressure: -0.9 bar
Operating Voltage: 24 V DC
Seat Seal Type: Soft seal

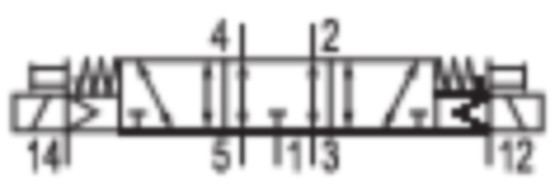

Valve Function: Exhausted Center
Valve Pilot: External
Voltage tolerance: -10% / +10%
Wattage: 2 W

View other configurations.

AVENTICS 5/3-directional valve, Series TC15 0820059861
