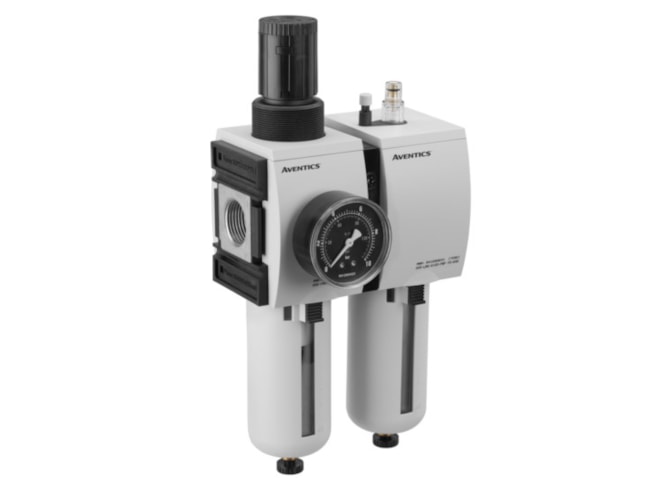

Aventics AS5-ACD-G034-GAU-080-PBP-AO-05.00-PBP-LA Combination Unit

FRL. View other configurations.

Call for pricing
Part Numbers
  • AS5-ACD-G034-GAU-080-PBP-AO-05.00-PBP-LA
  • R412009299
Highlights...

Features

  • Compressed air connection: G 3/4
  • Condensate drain: fully automatic, open without pressure
  • Filter porosity: 5 µm
  • Flow L M: 12300 l/min
  • Industry: Industrial
  • Lockable: for padlocks
  • Maintenance Unit Parts: Air preparation units
  • Max Working Pressure: 16 bar
  • Regulation Range: 8 bar
  • Regulation Range min.: 0.5 bar
  • Version Manometer: with pressure gauge
  • Version Reservoir: reservoir, polycarbonate, with PA protective guard
  • Dimension: 16.93x12.60x4.53 (inches)
View other configurations.
AVENTICS Air preparation unit, 2-part, Series AS5-ACD R412009299
