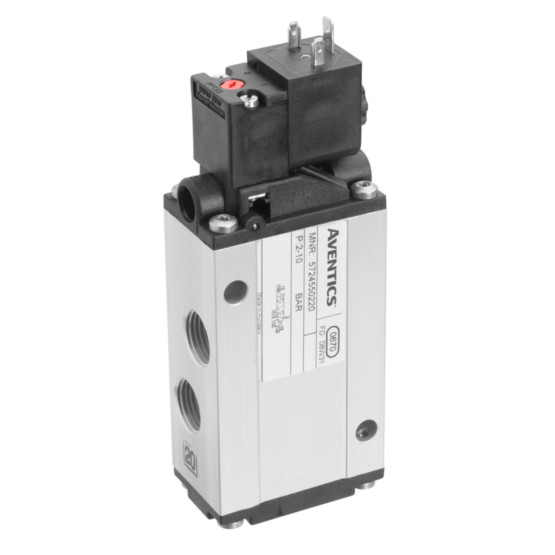

Aventics CD12-3/2NC-SR-110AC-I-M022-M022-EN175301 Electric and Pneumatic Actuated Directional Valve

Name: Aventics CD12-3/2NC-SR-110AC-I-M022-M022-EN175301 Electric and Pneumatic Actuated Directional Valve
Availability: BackOrder

Spool valve, Single valve. View other configurations.

Call for pricing

Effective March 12th, Aventics has added a 7.5% surcharge for all of their products. The surcharge will appear as a separate line item on each sales order.

Part Numbers

CD12-3/2NC-SR-110AC-I-M022-M022-EN175301
5724505970

Highlights...

CD12-3/2NC-SR-110AC-I-M022-M022-EN175301
By Aventics
FREE Shipping on orders of $1,000 or more
Usually ships in 7-10 business days

Features

Activation: Electrically
Compatibility index: 14
Compressed air connection output: M22x1,5
Electrical Connection 2: EN 175301-803, form A
Flow L M: 4000 l/min
Housing Material: Aluminum, Polyamide fiber-glass reinforced
Industry: Industrial
Manual Override: without detent
Max Working Pressure: 16 bar
Min Working Pressure: 2 bar
Operating Temperature: -25 °C cold-resistant
Operating Voltage: 110 V AC
Seat Seal Type: Soft seal

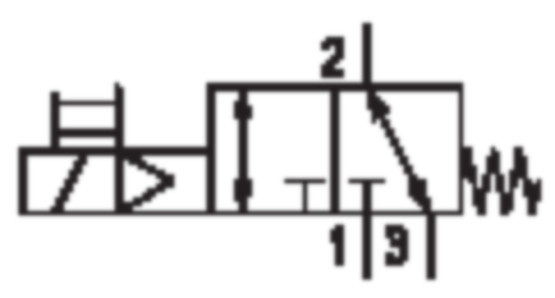

Switching principle: 3/2, with spring return
Valve Function: NC/NO
Valve Pilot: Internal
Dimension: 7.48x2.76x1.57 (inches)

View other configurations.

AVENTICS 3/2-directional valve, Series CD12 5724505970
