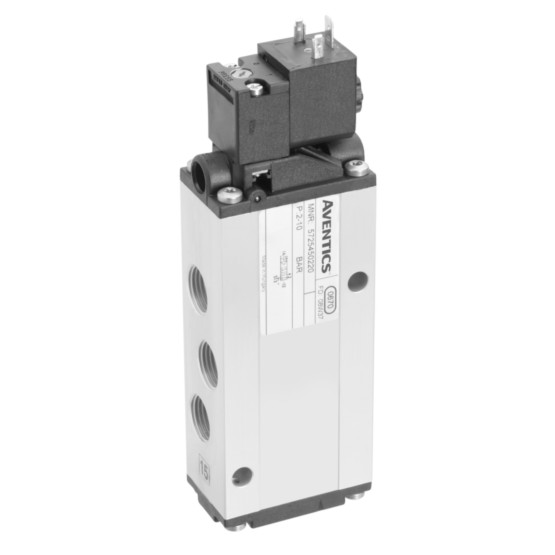

Aventics CD12-5/2XX-SR-110AC-E-G012-G012-EN175301 Electric and Pneumatic Actuated Directional Valve

Name: Aventics CD12-5/2XX-SR-110AC-E-G012-G012-EN175301 Electric and Pneumatic Actuated Directional Valve
Availability: BackOrder

Single valve, Spool valve. View other configurations.

Call for pricing

Effective March 12th, Aventics has added a 7.5% surcharge for all of their products. The surcharge will appear as a separate line item on each sales order.

Part Numbers

CD12-5/2XX-SR-110AC-E-G012-G012-EN175301
5725485270

Highlights...

CD12-5/2XX-SR-110AC-E-G012-G012-EN175301
By Aventics
FREE Shipping on orders of $1,000 or more
Usually ships in 7-10 business days

Features

Activation: Electrically
Compatibility index: 13, 14
Compressed air connection output: G 1/2
Electrical Connection 2: EN 175301-803, form A
Flow L M: 4100 l/min
Housing Material: Aluminum, Polyamide fiber-glass reinforced
Industry: Industrial
Manual Override: with detent, without detent
Max Working Pressure: 16 bar
Min Working Pressure: -0.95 bar
Operating Voltage: 110 V AC
Seat Seal Type: Soft seal

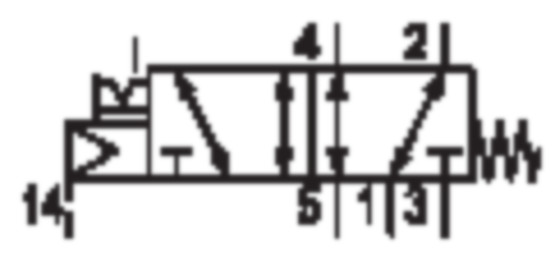

Switching principle: 5/2, with spring return
Valve Pilot: External
Dimension: 8.66x2.76x1.57 (inches)

View other configurations.

AVENTICS 5/2-directional valve, Series CD12 5725485270

Spec Sheets
