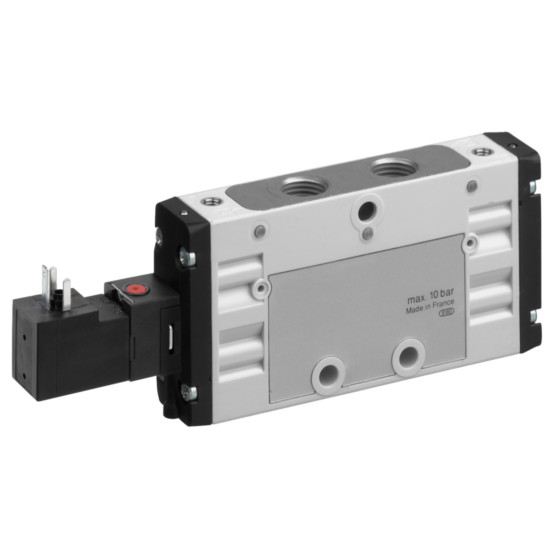

Aventics TC15-5/2XX-SR-024AC-I-FORM_C-SGL Electric and Pneumatic Actuated Directional Valve

Single valve, Spool valve, Pipe connection, inch, imperial. View other configurations.

Aventics TC15-5/2XX-SR-024AC-I-FORM_C-SGL Electric and Pneumatic Actuated Directional Valve — Aventics-TC15-5/2XX-SR-024AC-I-FORM_C-SGL

Call for pricing

Part Numbers

TC15-5/2XX-SR-024AC-I-FORM_C-SGL
R422000119

Highlights...

TC15-5/2XX-SR-024AC-I-FORM_C-SGL
By Aventics
FREE Shipping on orders of $1,000 or more
Usually ships in 7-10 business days

Features

Activation: Electrically
Compressed air connection output: G 1/4
Electrical Connection 2: ISO 15217, form C
Flow L M: 1500 l/min
Housing Material: Polyamide fiber-glass reinforced
Industry: Industrial
Manual Override: without detent
Max Working Pressure: 10 bar
Min Working Pressure: 3 bar
Operating Voltage: 24 V AC
Seat Seal Type: Soft seal
Valve Pilot: Internal

View other configurations.

AVENTICS 5/2-directional valve, Series TC15 R422000119
