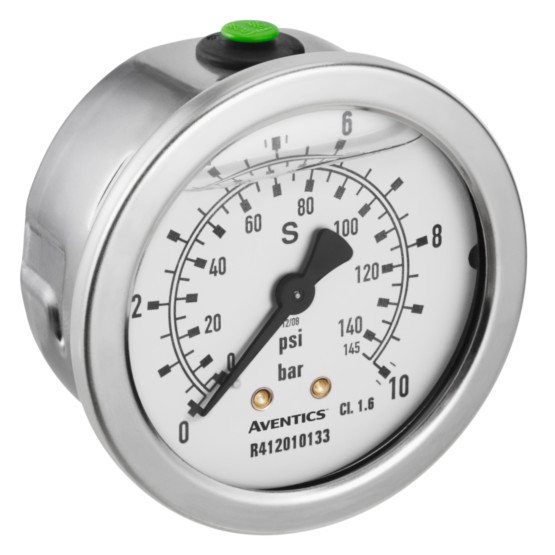

Aventics PG1-ROB-G014-GLY-D63-P0-10 Pressure Gauge

Features

• Background color: White
• Compressed air connection: G 1/4
• Display range max.: 10 bar
• Display range min.: 0 bar
• Housing Material: Stainless Steel
• Industry: Industrial
• Manometer housing diameter: 63 mm
• Max Ambient Temperature: 60 °C
• Max Working Pressure: 10 bar
• Min Ambient Temperature: -25 °C
• Pressure Gauge Grade: 1,6
• Range of application max.: 8 bar
• Range of application min.: 0 bar
• Scale value: 0.5
• Unit primary scale: bar
• Version Manometer: Bourdon tube pressure gauge, Back port, with glycerin filling
• Dimension: 2.76x2.76x2.76 (inches)
