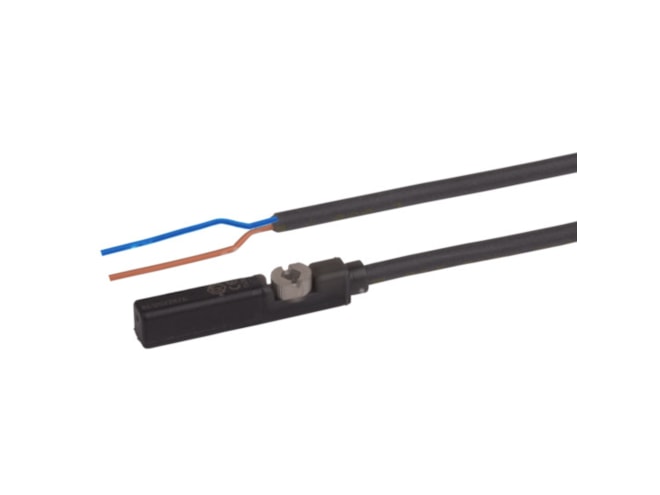

Aventics ST6-P2-K05U-20-ATEX-2GD Proximity Sensor

-30 °C cold-resistant, ATEX, Heat resistant, 6 mm T-slot, Proximity sensor. View other configurations.

Call for pricing
Part Numbers
  • ST6-P2-K05U-20-ATEX-2GD
  • R412027174
Highlights...

Features

  • Cable Length: 5 m
  • Certifications: ATEX, CE declaration of conformity, cULus, RoHS, UL (Underwriters Laboratories)
  • Cylinder series: TRB, ITS, CCL-IS, MNI, CSL-RD, RPC, ICS-D2, ICM, KHZ, TRR
  • Electrical Connection Type 2: Wire end clips
  • Industry: Industrial
  • Number of Poles 2: 2-pin
  • Protection class: IP67
  • Slot width: 6 mm T-slot
  • Supply voltage DC max.: 8.2 V DC
  • Dimension: 6.69x0.39x0.39 (inches)
View other configurations.
AVENTICS Sensor, Series ST6 R412027174
