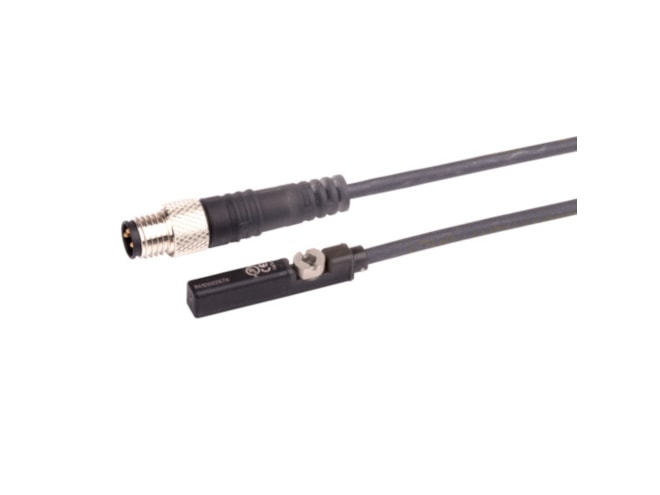

Aventics ST6-R3-M08U-030 Proximity Sensor

-30 °C cold-resistant, Heat resistant, ATEX, 6 mm T-slot, Proximity sensor. View other configurations.

$36.69
Part Numbers
  • ST6-R3-M08U-030
  • R412022874
Highlights...

Features

  • Cable Length: 0.5 m
  • Certifications: CE declaration of conformity, cULus, RoHS, UL (Underwriters Laboratories)
  • Cylinder series: TRB, ITS, CCL-IS, MNI, CSL-RD, RPC, ICS-D2, ICM, KHZ, TRR
  • Electrical Connection 2: M8x1
  • Electrical Connection Type 2: Plug
  • Hysteresis: ≥ 0,2 mT
  • Industry: Industrial
  • LED color: Yellow
  • Number of Poles 2: 3-pin
  • Output Signal: Reed
  • Protection: Protected against polarity reversal
  • Protection class: IP65, IP67
  • Slot width: 6 mm T-slot
  • Supply voltage AC max.: 30 V AC
  • Supply voltage DC max.: 30 V DC
View other configurations.
AVENTICS Sensor, Series ST6 R412022874
