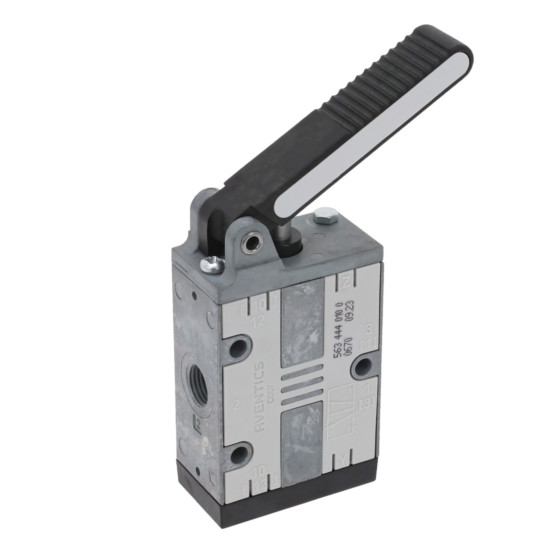

Aventics CD07-3/2NC-SR-HL-G014-G014-S Electric and Pneumatic Actuated Directional Valve

Spool valve, Single valve. View other configurations.

Aventics CD07-3/2NC-SR-HL-G014-G014-S Electric and Pneumatic Actuated Directional Valve — Aventics-CD07-3/2NC-SR-HL-G014-G014-S

Call for pricing

Part Numbers

CD07-3/2NC-SR-HL-G014-G014-S
5634440100

Highlights...

CD07-3/2NC-SR-HL-G014-G014-S
By Aventics
FREE Shipping on orders of $1,000 or more
Usually ships in 7-10 business days

Features

Activation: Mechanical
Actuating element: Hand lever
Certifications: Suitable for ATEX
Compressed air connection: G 1/4
Compressed air exhaust: G 1/4
Flow L M: 1400 l/min
Housing Material: Die cast zinc, Polyamide fiber-glass reinforced
Industry: Industrial
Max Working Pressure: 10 bar
Min Working Pressure: -0.95 bar
Scale size: CD07
Seat Seal Type: Soft seal

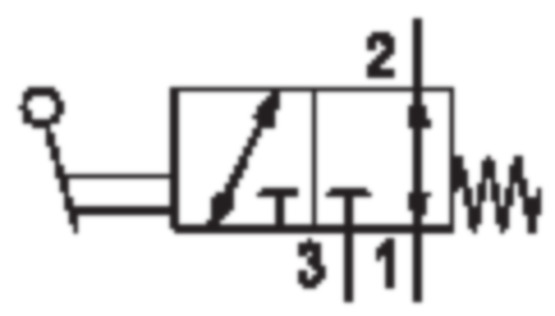

Switching principle: 3/2, with spring return
Valve Function: NC/NO
Dimension: 6.02x3.46x1.38 (inches)

View other configurations.

AVENTICS 3/2-directional valve, Series CD07 5634440100
