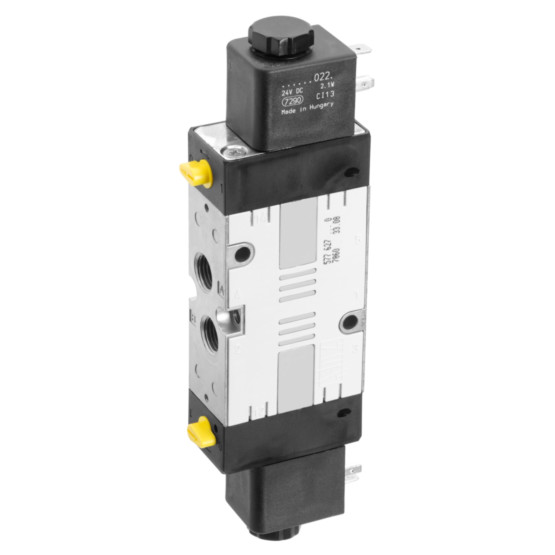

Aventics CD07-5/2XX-DO-230AC-E-M014 Electric and Pneumatic Actuated Directional Valve

Spool valve, Single valve. View other configurations.

Aventics CD07-5/2XX-DO-230AC-E-M014 Electric and Pneumatic Actuated Directional Valve — Aventics-CD07-5/2XX-DO-230AC-E-M014

Call for pricing

Part Numbers

CD07-5/2XX-DO-230AC-E-M014
5776235280

Highlights...

CD07-5/2XX-DO-230AC-E-M014
By Aventics
FREE Shipping on orders of $1,000 or more
Usually ships in 7-10 business days

Features

Activation: Electrically
Compatibility index: 13, 14
Compressed air connection: M14x1,5
Compressed air connection output: M14x1,5
Electrical Connection 2: EN 175301-803, form A
Flow L M: 1200 l/min
Housing Material: Die cast zinc, Polyamide fiber-glass reinforced
Industry: Industrial
Manual Override: with detent
Max Working Pressure: 10 bar
Min Working Pressure: -0.95 bar
Operating Temperature: -25 °C cold-resistant
Scale size: CD07
Seat Seal Type: Soft seal

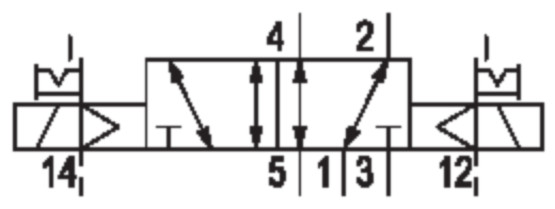

Switching principle: 5/2, double solenoid
Valve Pilot: External
Dimension: 7.72x2.80x1.77 (inches)

View other configurations.

AVENTICS 5/2-directional valve, Series CD07 5776235280
