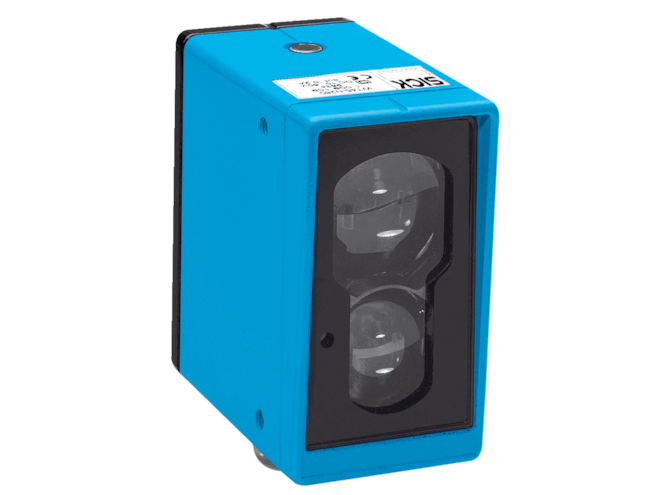

SICK W45 Series Photoelectric Sensor

Proximity, retro-reflective, and through-beam models. Up to 350m range. Visible or infrared light, with adjustable time delays. Optional front lens heating.

This model has 25 variants.
Part Number
  • W45 Series
Highlights...

Features

  • Functional principle:
    • Photoelectric proximity sensor
    • Photelectric retro-reflective sensor
    • Through-beam photoelectric sensor
  • Functional principle(s):
    • Background suppression
    • With minimum distance to reflector (dual lens system)
  • Light source: LED
    • infrared, visible red
  • Adjustment: potentiometer
  • Sensing range:
    • 200 to 1000mm
    • 200 to 2000mm
    • 0 to 35m
    • 0 to 350m
    • 1 to 55m
  • Switching mode: light/dark
  • Switching output: relay, NPN, PNP
  • Optional front lens heating
  • Detection of high temperature target configurations available
    • (>800°C)
  • Supply voltage: 10 to 60V DC or 24 to 240V AC/DC

The SICK W45 Series Photoelectric Sensor is a sensor family including proximity, retro-reflective, and through-beam sensors. This operates either with infrared or visible red light, depending on configuration. The W45 includes adjustable time delay settings for adaptability, light/dark switching, and either relay, NPN or PNP outputs.

The W45 can be configured with front lens heating, preventing condensation and frost in outdoor use cases. Supply voltage compatibility for DC and AC/DC power is available. Select configurations are designed for detection of high temperature objects such as glowing steel, which involves temperatures over 800°C. Each model includes durable metal housing with either an IP65/67 rating, built to withstand harsh application environments, with a max sensing distance up to 350m (with through-beam models).
