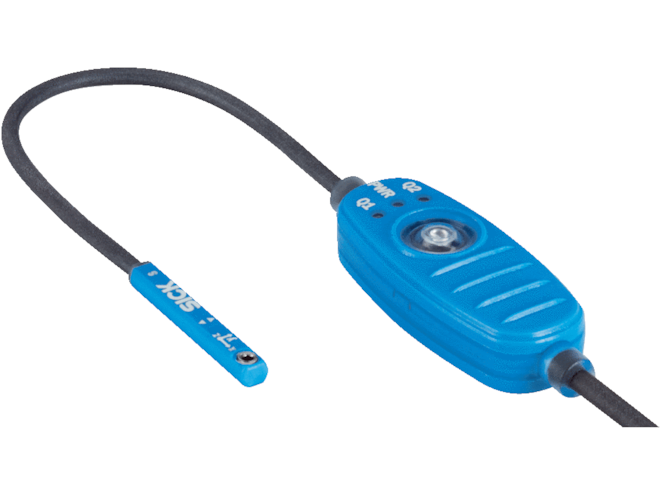

SICK MPS-G Series Cylinder Sensor

Continuous position detection for robotic gripper finger positions and small pneumatic cylinders. Analog and voltage output or IO-Link and three digital outputs.

This model has 9 variants.
Part Number
  • MPS-G Series
Highlights...

Features

  • Direct mounting in C-slots on pneumatic cylinders and grippers
    • T-slot and other cylinder types possible with adapters
  • Measuring range: 50mm
  • Housing length: 25mm
  • Communication: IO-Link (dependent on model)
  • Analog outputs (for current or voltage)
  • Switching output: push-pull
  • Adjustment: teach-in
  • Wiring: DC 4-wire
  • Cable material: PUR
  • Various connection types

The SICK MPS-G Series Cylinder Sensor is a high-precision magnetic distance measuring system, with a range of 50mm. The sensor provides a position value as well as 2 or more switching points to differentiate between gripper and cylinder positions. The MPS-G offers positional data down to the micrometer, and is readily installed in C-slots, or T-slots with an adapter. Configurations available include an analog sensor with voltage output, or an IO-Link sensor, with three configurable digital outputs. The advanced diagnostic data the MPS-G generates includes both process and actuator focused data. Process diagnostics center around vibration analysis, temperature measurement and orientation monitoring. Actuator diagnosis data for the MPS-G Series includes piston velocity, cylinder stroke and magnetic field strengths, which aids in reduced system downtime through the application of predictive maintenance of critical components.
