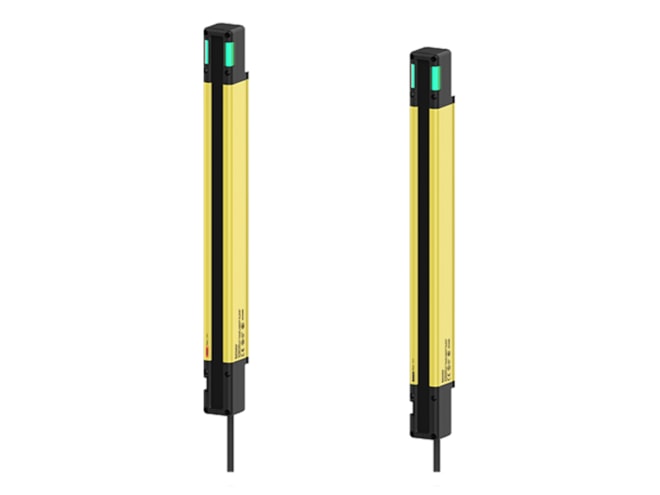

Autonics SFL/SFLA Safety Light Curtain
Safety light curtain series with easy beam adjustment and dedicated software provided.
Overview
Features
- International safety standard and regulation compliance
- 3 detection models available: finger, hand, and hand-body
- Safety-related and self-diagnosis functions
- 7-segment display and status indicator reading
- Easy beam adjustment
- Top and bottom beam indicators
- Upper OSSD indicator to check operating/muting status
- 4 non-safety outputs
- Protection rating: IP65, IP67, IP67G, IP69K
- Ambient temperature: -30 to 60°C
Description
The Autonics SFL and SFLA Series of safety light curtains offer offer various detection type models (finger/hand/hand-body detection) and safety functions for diverse applications. The light curtains feature stable operation in diverse conditions including low temperature, oil, high pressure. The “A” stands for advanced. This option gets a user further advanced settings in the atLightCurtain Software such as real-time status monitoring user settings such as automatic muting/blanking area functions.

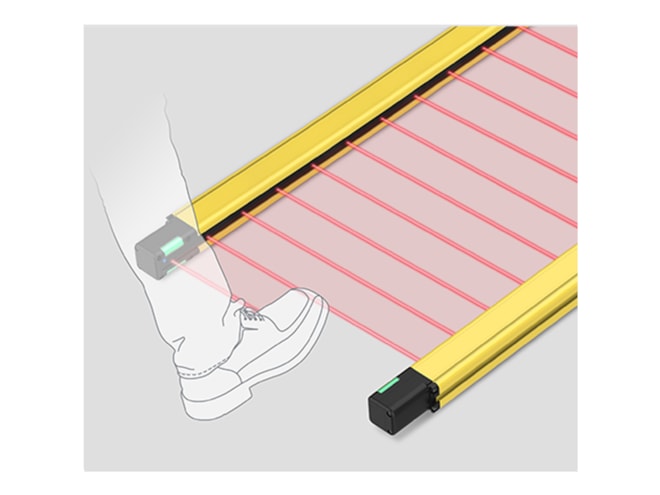

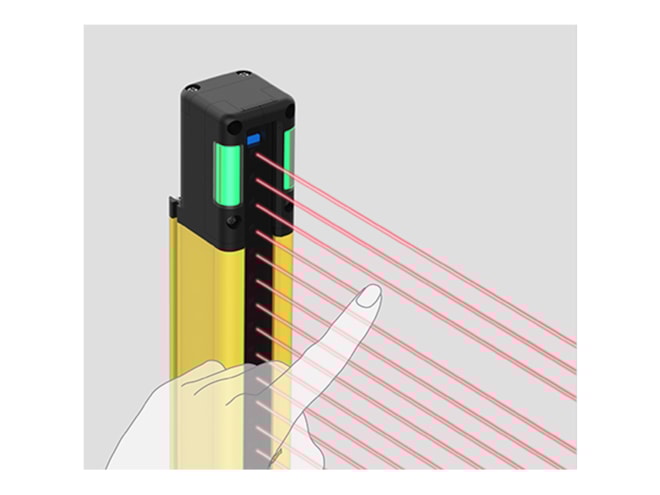

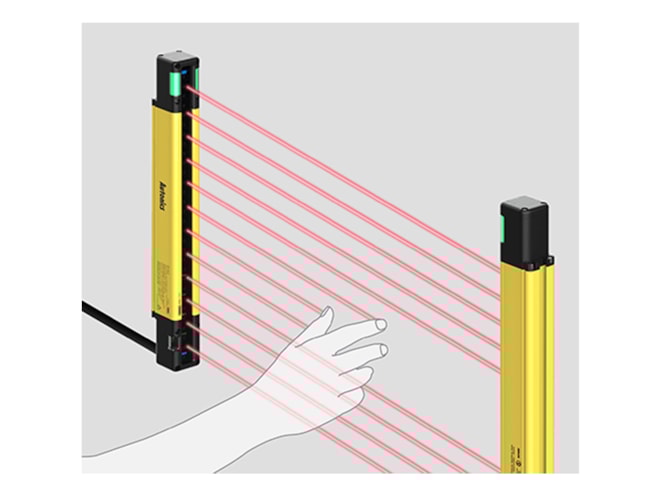

Standard and adjustable brackets are available and can be installed on top, bottom, or middle of the units. The one-touch method offers easy installation on middle of the units. The adjustable brackets can be adjusted by 15 degrees to right or left for easier installation. Finger detection (Ø14 mm), hand detection (Ø20 mm), hand-body detection (Ø30 mm) models available for application in diverse user environments. Users can also check light received status during installation with the beam indicator on the top and bottom of the unit. The units feature 7-segment display and LED indicators for easy status readings.
