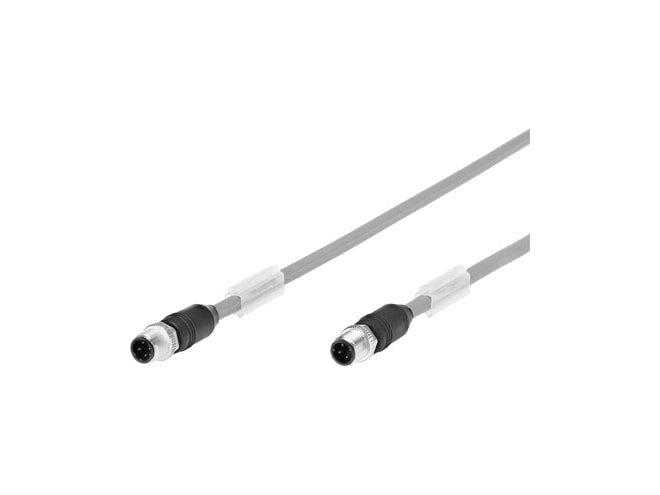

Festo NEBC-D12G4-ES-1-S-D12G4-ET Connecting Cable

Features

• With label holder cable designation
• 50 frequency of connection
• 98.5G product weight
• Field device side electrical connection 1, function
• Round electrical connection 1, design
• Plugs electrical connection 1, connection type
• Straight electrical connection 1, cable outlet
• M12x1, D-coded to EN 61076-2-101 electrical connection 1, connector system
• 4 electrical connection 1, number of connections/cores
• 4 electrical connection 1, used connections/cores
• Screw-type lock with 13 mm hexagon and longitudinal knurl electrical connection 1, type of mounting
• 995612 electrical connection 1, connection pattern
• Controller side electrical connection 2, function
• Round electrical connection 2, design
• Plugs electrical connection 2, connection type
• Straight electrical connection 2, cable outlet
• M12x1, D-coded to EN 61076-2-101 electrical connection 2, connector system
• 4 electrical connection 2, number of connections/cores
• 4 electrical connection 2, used connections/cores
• Screw-type lock with 13 mm hexagon and longitudinal knurl electrical connection 2, type of mounting
• 995612 electrical connection 2, connection pattern
• 0V operational voltage range dC
• 30V operational voltage range dC
• 4A current rating at 40° c
• 0.8KV immunity to surge
• Due to screening, a leakage flow of up to 20 mA is permissible. note on immunity to surge
• Yes shielding
• In accordance with category 5, EN 50173, class D transmission characteristics
• In accordance with category 5, ISO/IEC 11801, class D transmission characteristics
• Type: CAT.5 specification ethernet cable
• 1M cable length
• Suitable for energy chains cable characteristic
• Bending strength: to Festo standard test conditions cable
• Test conditions on request test conditions cable
• Energy chain: > 2 million cycles, bending radius 100 mm test conditions cable
• 40MM bending radius, fixed cable
• 100MM bending radius, moving cable
• 6.7MM cable diameter
• ± 0.3 mm cable diameter tolerance
• 4 x 0.34 mm² cable structure
• 0.34I2 nominal cross section conductor
• AWG22 conductor nominal cross section
• IP65 degree of protection
• IP67 degree of protection
• Oil resistant special characteristics
• -25GC ambient temperature
• 80GC ambient temperature
• -20GC ambient temperature with moving cable
• 60GC ambient temperature with moving cable
• In accordance with EU RoHS Directive cE mark (see declaration of conformity)
• To UK RoHS instructions cE marking (see declaration of conformity)
• VDMA24364-B2-L lABS (PWIS) conformity
• RoHS-compliant note on materials
• 3 pollution degree
• 1 - Low corrosion stress corrosion resistance class cRC
• TPE-U(PUR) material cable sheath
• Green cable sheath colour
• TPE-U(PUR) material housing
• Black housing colour
• Die-cast zinc, nickel-plated material screw-type lock
• Brass material electrical contact
• Bronze material electrical contact
• PE material insulating sheath
• Die-cast zinc material threaded sleeve
• -25GC to 80GC storage temperature
