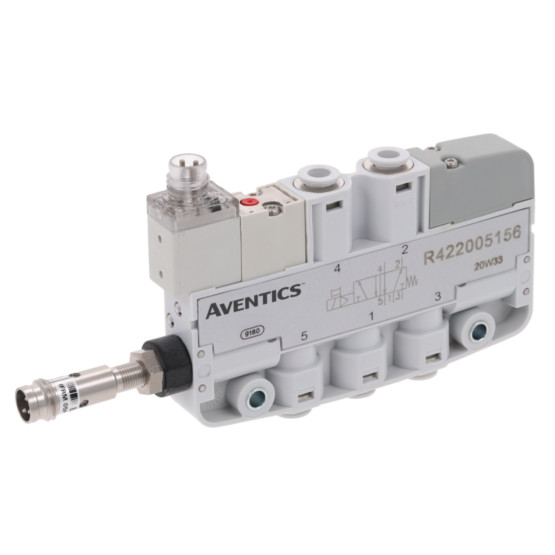

Aventics LS04-AF-PD-5/2-024DC-I-M8-D6 Electric and Pneumatic Actuated Directional Valve

Pipe connection, Single valve, Spool valve. View other configurations.

Aventics LS04-AF-PD-5/2-024DC-I-M8-D6 Electric and Pneumatic Actuated Directional Valve — Aventics-LS04-AF-PD-5/2-024DC-I-M8-D6

Call for pricing

Part Numbers

LS04-AF-PD-5/2-024DC-I-M8-D6
R422005155

Highlights...

LS04-AF-PD-5/2-024DC-I-M8-D6
By Aventics
FREE Shipping on orders of $1,000 or more
Usually ships in 7-10 business days

Features

Activation: Electrically
Compressed air connection output: Ø 6
Electrical Connection 2: M8
Flow L M: 310 l/min
Housing Material: Polyoxymethylene
Industry: Industrial
Manual Override: without detent
Max Working Pressure: 7 bar
Min Working Pressure: 3 bar
Operating Voltage: 24 V DC
Seat Seal Type: Soft seal

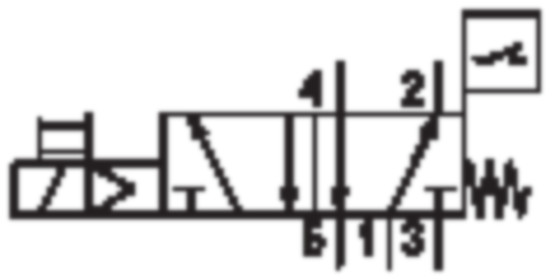

Switching principle: 5/2, with spring return
Valve Pilot: Internal
Voltage tolerance: -10% / +10%
Wattage: 1.3 W
Dimension: 1.57x0.98x0.39 (inches)

View other configurations.

AVENTICS 5/2 directional valve, series LS04-PD R422005155
