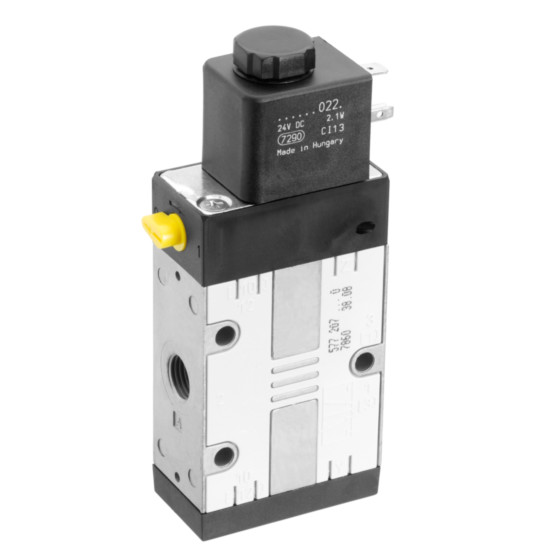

Aventics CD07-3/2NC-SR-230AC-E-G014 Electric and Pneumatic Actuated Directional Valve

Single valve, Spool valve. View other configurations.

Aventics CD07-3/2NC-SR-230AC-E-G014 Electric and Pneumatic Actuated Directional Valve — Aventics-CD07-3/2NC-SR-230AC-E-G014

Call for pricing

Part Numbers

CD07-3/2NC-SR-230AC-E-G014
5772085280

Highlights...

CD07-3/2NC-SR-230AC-E-G014
By Aventics
FREE Shipping on orders of $1,000 or more
Usually ships in 7-10 business days

Features

Activation: Electrically
Compatibility index: 13, 14
Compressed air connection: G 1/4
Compressed air connection output: G 1/4
Electrical Connection 2: EN 175301-803, form A
Flow L M: 1400 l/min
Housing Material: Die cast zinc, Polyamide fiber-glass reinforced
Industry: Industrial
Manual Override: with detent
Max Working Pressure: 10 bar
Min Working Pressure: -0.95 bar
Operating Temperature: -25 °C cold-resistant
Scale size: CD07
Seat Seal Type: Soft seal

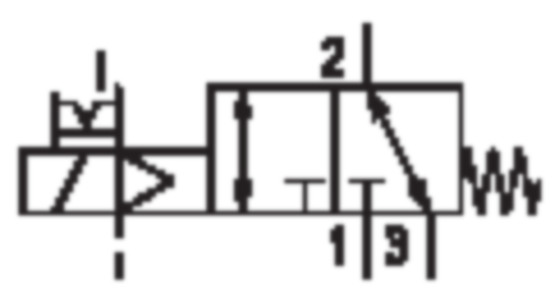

Switching principle: 3/2, with spring return
Valve Function: NC/NO
Valve Pilot: External
Dimension: 5.35x2.60x1.69 (inches)

View other configurations.

AVENTICS 3/2-directional valve, Series CD07 5772085280
