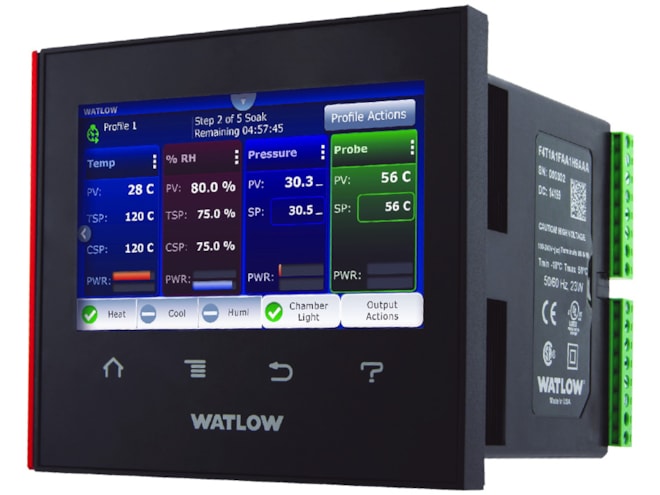

Watlow F4T Process Controller

1/4 DIN, color touch screen panel with high resolution graphical user-interface and 1 to 4 control loops.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our engineers at 1-802-880-3123. We’re open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET.
Starting Price: $1,064.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • 4.3-inch color, graphical touch panel
  • High-resolution graphical user-interface
  • 1 to 4 control loops
  • TRU-TUNE+ adaptive control algorithm
  • 40 profiles for ramp and soak and real-time clock and battery backup
  • Ethernet Modbus TCP connectivity
  • Two USB hosts port and one device port
  • Over/under-temperature limits
  • Universal, thermistor & AC current measurement inputs
  • Inputs and outputs expandable from 1 to 36

The Watlow F4T Process Controller with INTUITION™ offers a wide range of field removable I/O modules for maximum design flexibility. Configurations can be custom tailored to meet the scaling needs of a range of equipment and applications while providing the hardware types required for compatibility. The F4T controller also features a 4.3 inch, color, graphical touch panel - shortening learning curves and reducing operator errors. Combining power, flexibility and functionality, this new controller offers versatility, and its ease-of-use could eliminate the need of user manuals.

The F4T features temperature PID, over/under-temperature limit, power switching, math, logic, timers and counters combined into one integrated system. The unit is also provided with algorithms for temperature, cascade, altitude, humidity and compressor. Additionally, the F4T is available through Watlow SELECT®, a program that enables users to identify, configure, and receive thermal products faster and easier than before. Many communications options are available including Ethernet Modbus® TCP and SCPI and EIA232/485 Modbus® RTU. The modular design adapts to evolving requirements.

Required Components

These additional components are required for the operation of your product. We strongly advise you to purchase these components unless you already own them or own a suitable alternative.

Watlow Limit Flex Module
Watlow Limit Flex Module

Limit control modules with universal, thermistor and temperature inputs for use with Watlow F4T or D4T.

Starting at $130.00
Watlow Communication Flex Module
Watlow Communication Flex Module

Modbus RTU 232/485 communications available for slot 6 of the Watlow F4T or D4T.

Starting at $100.00
Watlow Mixed I/O Flex Modules
Watlow Mixed I/O Flex Modules

Single channel module for use with the Watlow F4T or D4T, 2 outputs options available.

Starting at $35.00
Watlow High Density Flex Modules
Watlow High Density Flex Modules

Four channel input module for use with the Watlow F4T or D4T.

Starting at $108.00
